DigetPay supports two recurring payment models:

• Scheduled Recurring
• Unscheduled Recurring

Both models use a payment token generated from the customer's initial payment, allowing future charges without collecting the customer's card details again.

How Recurring Payments Work

The merchant can configure recurring payment settings directly from the Merchant Dashboard.

Available configuration includes:

• Enable or disable recurring payments.
• Billing cycle.
• Number of installments.
• Customer payment experience.

These settings apply automatically to newly created recurring payment plans.

Recurring Payment Flow

sequenceDiagram
    autonumber

    participant Customer
    participant Merchant
    participant DigetPay
    participant Gateway

    Customer->>Merchant: First payment
    Merchant->>DigetPay: Create initial payment
    DigetPay->>Gateway: Process payment
    Gateway-->>DigetPay: Approved
    DigetPay-->>Merchant: Payment approved + recurringToken

    Note over Merchant: Store recurringToken securely

    loop Future recurring payments
        Merchant->>DigetPay: Charge recurringToken
        DigetPay->>Gateway: Process recurring payment
        Gateway-->>DigetPay: Result
        DigetPay-->>Merchant: Success / Failed
    end

Recurring Payment Types

Scheduled Recurring

Scheduled recurring payments occur automatically on a predefined schedule.

Typical examples include:

• Monthly subscriptions
• Weekly memberships
• Daily services
• Installment plans

The billing cycle and number of payments are configured before the subscription starts.

Example

Unscheduled Recurring

Unscheduled recurring payments do not follow a fixed schedule.

Instead, the merchant initiates future charges whenever a new payment is required.

Common use cases include:

• Utility bills
• Pay-as-you-go services
• Metered billing
• Usage-based pricing
• Variable subscription amounts

Since there is no predefined schedule, each recurring payment is initiated by the merchant whenever applicable.

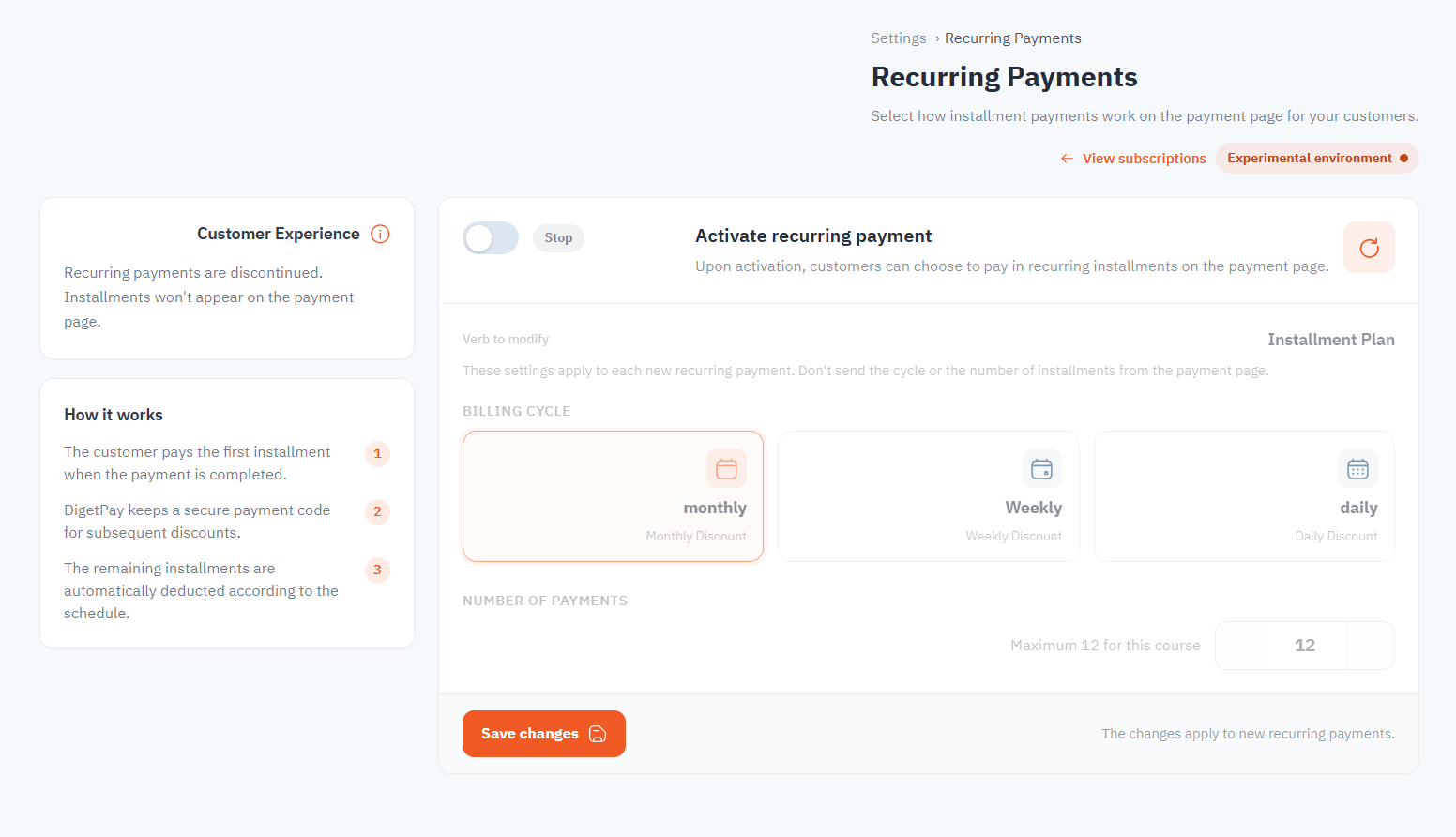

Merchant Dashboard Configuration

The Merchant Dashboard allows merchants to configure recurring plans without sending installment information during checkout.

Supported configuration includes:

Scheduled Payment Timeline

timeline

    title Monthly Subscription Example

    Checkout : Customer completes first payment

    Month 1 : First installment

    Month 2 : Automatic payment

    Month 3 : Automatic payment

    ...

    Month 12 : Final installment

Initial Payment

The customer completes the first payment normally using the checkout page or Embedded Integration.

During this payment:

• Customer authentication is performed.
• Payment authorization is completed.
• DigetPay generates a recurring payment token.
• The merchant receives the recurring token for future charges.

Future Payments

Future recurring payments use:

• The recurring token generated during the initial payment
• The original transaction reference
• Merchant API credentials

The customer's card information is not collected again.

Future recurring charges must be initiated from the merchant's secure backend using the Recurring API.

API Request Example

The following example shows a recurring charge using the token generated during the initial sale:

{
  "transactionId": "c09fba3c-59e2-434a-9ec1-5d2e71a44a8d",
  "recurringToken": "token_from_initial_sale",
  "amount": 50,
  "order": {
    "number": "ORD-REC-001",
    "amount": 50,
    "currency": "SAR",
    "description": "Monthly subscription"
  }
}

Request Fields

Example Response

{
  "code": 200,
  "message": "Success",
  "errorCode": null,
  "data": {
    "transactionId": "cd84d742-fe91-4592-b063-63c475b4479a",
    "acquirerPaymentId": "07076929474363397274",
    "amount": "50",
    "message": "Recurring transaction successful",
    "status": "APPROVED",
    "orderId": "ORD-REC-001",
    "recurringToken": "TKN-718c06a0-ccb4-4f48-9ef4-8cba2c7750b8"
  }
}

Response Fields

Handling the Result

After submitting a recurring payment:

1. Check the API response and transaction status.
2. Store the returned transactionId for transaction tracking and reconciliation.
3. Monitor the corresponding webhook notification.
4. Verify the final transaction status using the Transaction Status API when required.
5. If the payment fails, apply your merchant retry or customer notification policy.

PCI-DSS and Token Security

Using a recurring payment token means that subsequent payments do not require the merchant to collect the customer's raw card details again. However, tokenization does not automatically remove all PCI-DSS responsibilities.

The merchant remains responsible for protecting the recurring token and maintaining the security controls applicable to its payment environment and integration model.

At minimum:

• Store recurring tokens securely on the merchant backend.
• Do not store card numbers, CVV/CVC, or other sensitive authentication data.
• Never expose recurring tokens in browser code or mobile applications.
• Do not include recurring tokens in URLs, application logs, error messages, or analytics data.
• Restrict access to recurring tokens to authorized services and personnel.
• Apply appropriate security controls to protect stored tokens from unauthorized access.
• Follow the merchant's applicable PCI-DSS requirements and compliance obligations.

Best Practices

• Store recurring tokens securely on your backend.
• Never expose recurring tokens to browsers or mobile applications.
• Use recurring tokens only from your backend.
• Never store raw card details or CVV/CVC for recurring payments.
• Do not log recurring tokens or include them in URLs.
• Monitor webhook notifications for recurring payment results.
• Verify transaction status when reconciliation or confirmation is required.
• Handle failed recurring payments according to your business rules.
• Apply appropriate access controls to recurring payment credentials.
